Modular Design  ¦  Design Smarter. Build Faster

ClearTech provides specialist structural engineering for modular construction and Modern Methods of Construction (MMC), developing solutions that integrate structural performance with the requirements of off-site manufacture, transportation, lifting and on-site assembly.


From volumetric modular systems and standardised structural solutions to foundations, connections and temporary stability, we focus on design for manufacture and assembly (DfMA), buildability and repeatability. Our approach helps clients reduce construction time, improve quality and programme certainty, minimise waste and unlock the commercial and sustainability benefits of off-site construction.

  • Structural Engineering

    Structural design of modular and volumetric systems, including modules, primary structures, foundations, transfer structures and connections.

  • Design for Manufacture & Assembly (DfMA)

    Engineering solutions developed around efficient off-site manufacture, transportation, lifting and rapid on-site assembly.

  • Value Engineering

    Optimising structural systems, materials, module configurations and connections to reduce cost, weight, waste and construction time.

  • Standardisation & Repeatability

    Creating standardised structural designs and details that can be replicated across multiple modules, building types and future projects.

  • BIM & Digital Design

    Using coordinated digital models to improve design integration, clash detection, manufacturing information and collaboration between design, factory and site teams.

  • Connections & Interfaces

    Engineering critical connections between individual modules and interfaces with foundations, cores and other traditionally constructed elements.

Case Study : Modular Residential Development, Malaysia

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

Background:

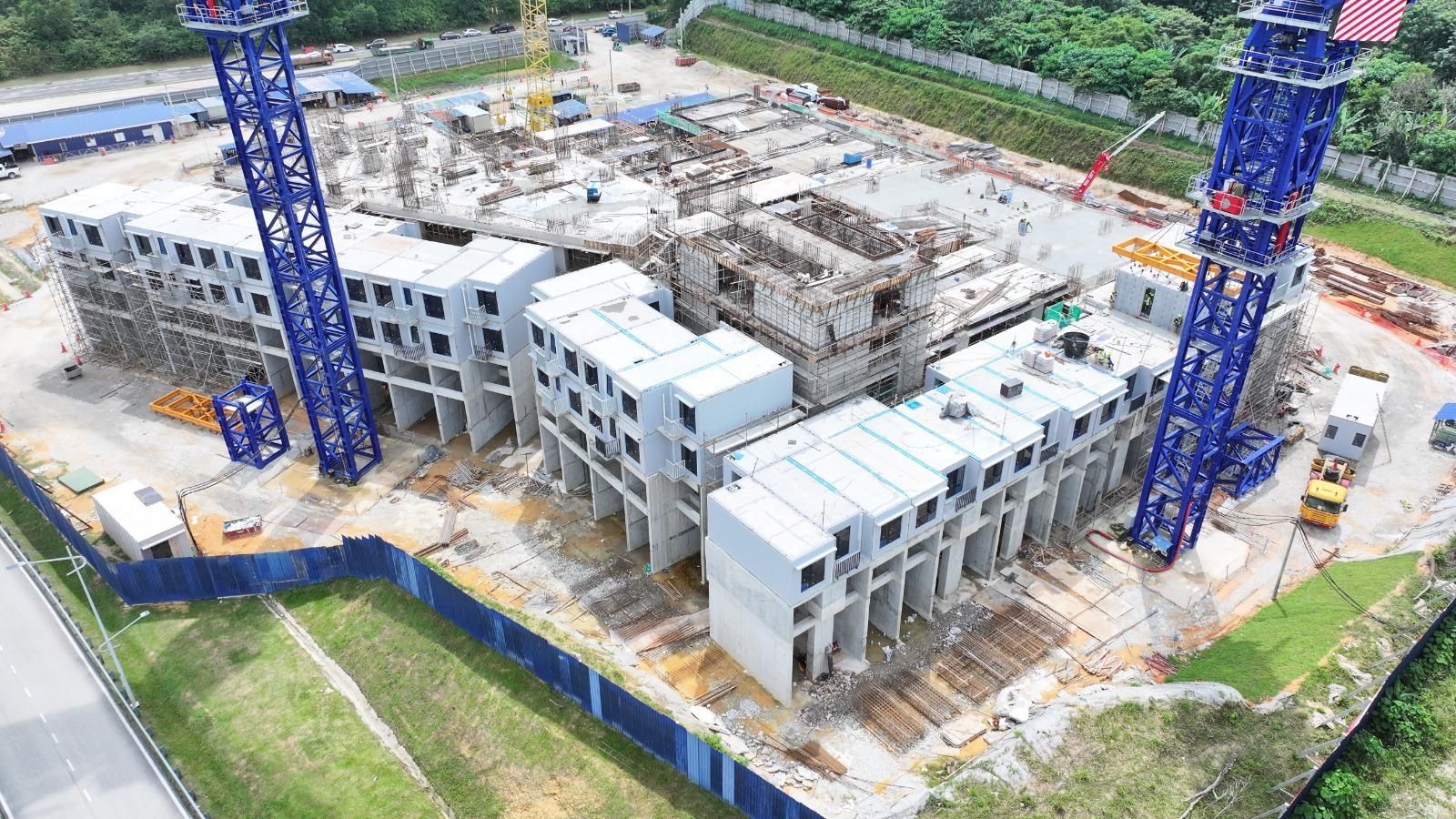

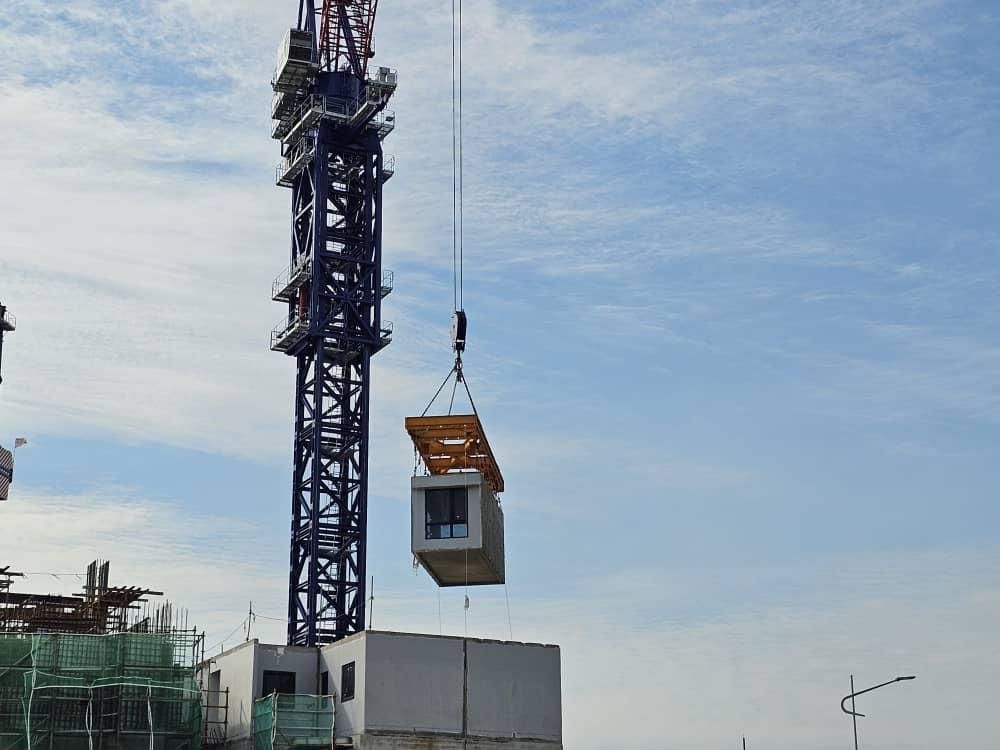

This project involved the development of 21 no plots with this being the first phase of this development in Kuala Lumpur Malaysia.  The main residential building is 29 storeys with 573 units made up of multiple modular units prefabricated off site in a casting and preparation yard.  A carparking podium is also cast insitu with transfers for the modular units. The adjoining parking podium which is 9 storeys with 1015 parking spaces for cars and motor bikes and a level 10 recreational level attached to the residential area.


Approach:

ClearTech’s scope on the project was the engineering & technical assistance for both the podium and the tower and also development of the precasting yard and solution for the modular systems for the project.

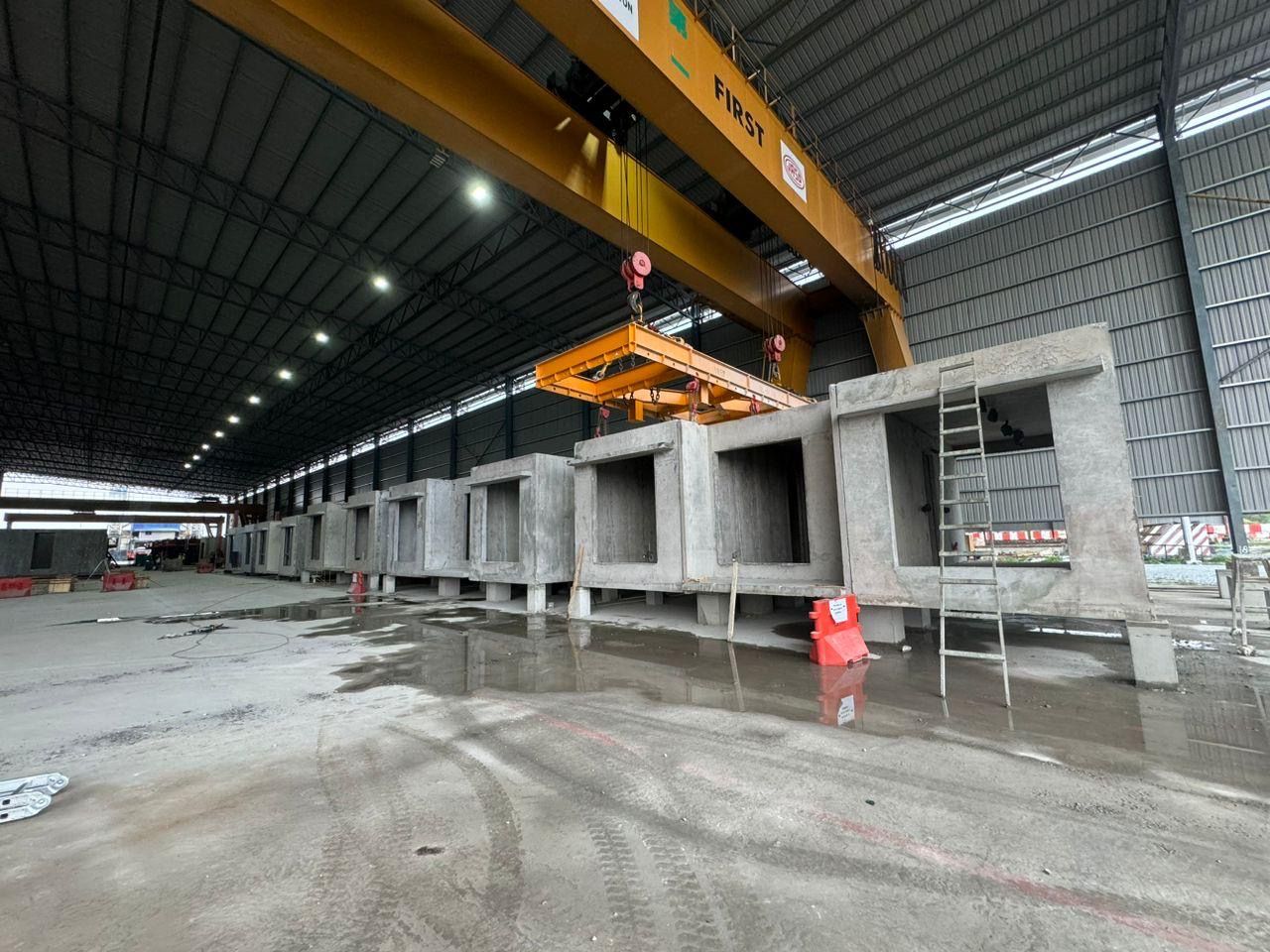

Working with our client in Asia to develop up their factory for the production of 10,000 modular units per year. Looking at Steel and Cast insitu solutions and optimising the fabrication processes for the client.


Outcome:

Working closely with the client team and the Architect, ClearTech incorporated BIM and Costings of all facets of the project.
